8501 Series Closers
Norton 8501 Grade 1 Door Closer – Heavy Duty Door Closers
Upgrade your commercial doors with the Norton 8501 Door Closers, designed for high-performance and durability in demanding environments.
Key Features:
- Adjustable Spring Sizes: Easily set from size 1 to 6 for customized door control.
- Integrated Stop Function: Built-in soffit plate stop halts door swing between 85° to 110°, adjustable in 5° increments.
- Backcheck Control: Slows door speed before reaching the stop to minimize impact and wear.
- Heavy-Duty Parallel Arm: Ideal for push-side mounting where auxiliary stops are not feasible.
- Durable Construction: Cast aluminum body with staked valves for long-lasting performance.
- Non-Handed Design: Suitable for both left- and right-hand doors.
Certifications & Compliance:
- ANSI/BHMA A156.4 Grade 1 Certified
- UL / cUL Listed for fire-rated doors
- UL10C Positive Pressure Fire Test Compliant
- ADA & ANSI A117.1 Compliant for accessibility
- Manufactured in ISO 9001 & ISO 14001 Certified Facility
Ideal Applications:
Perfect for commercial buildings, schools, hospitals, and offices where moderate abuse is expected. For high-abuse environments, consider upgrading to the Norton Unitrol Arm for enhanced durability.
Options
BF: No longer needed. all 8500’s have new spring for size 1 thru 6
DA: Delayed action closing
H: Hold open arm function

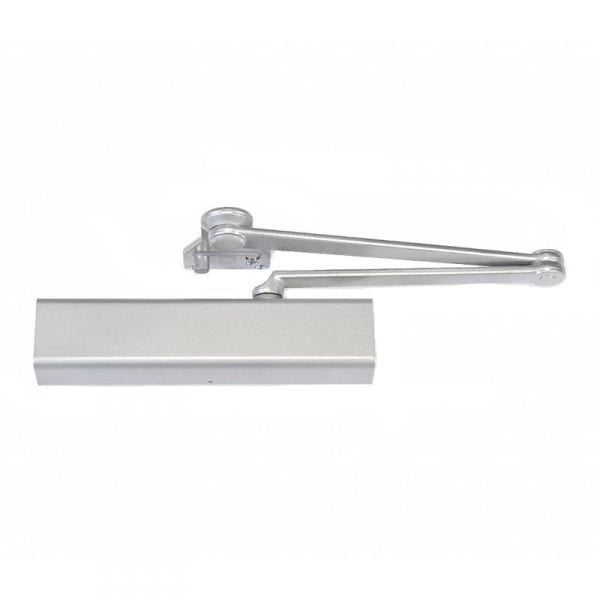

CLP:
SNB: All closers packed with sex nuts and bolts
Stocked Product
Options Stocked: REGULAR, DA, H, CLP

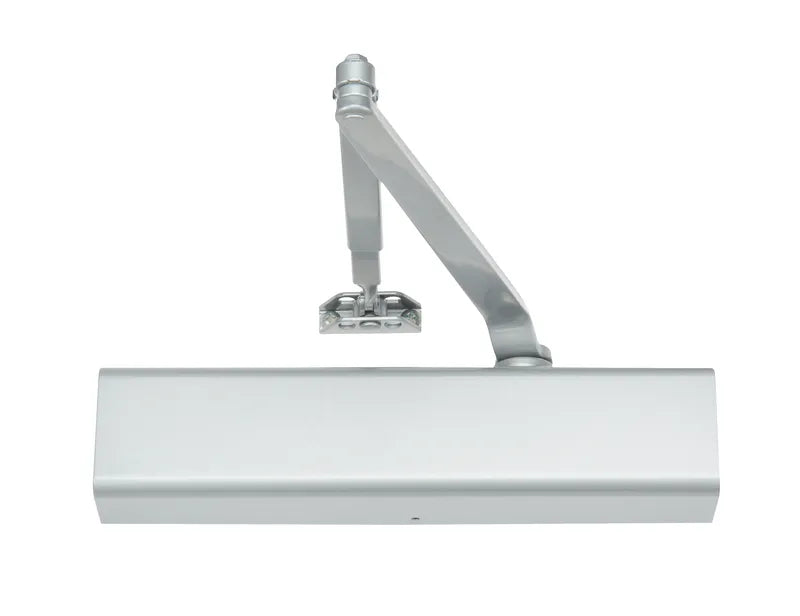

689 (aluminum)

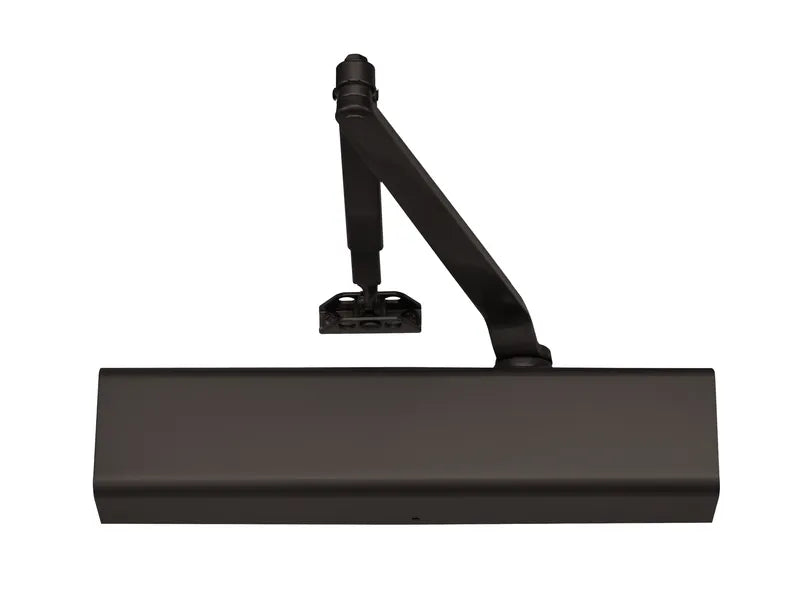

690 (dark bronze)
