PUSH AND PULL
Features:
• All Plate Goods are 16 Gauge (.050) Thick.
• Stainless Steel SS430, no Nickel.
• Plates individually wrapped with Mounting Screws.
• Pull Plates and Handles have Mounting Screws for 1-3/4”
Thick Door.
• All Plates Packed with Stainless Steel Sheet Metal Screws
Plated to Match Finish.
Options:

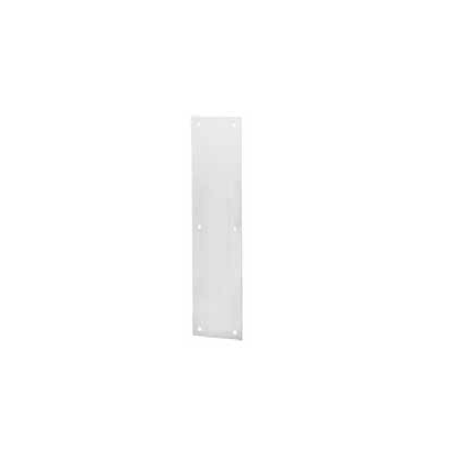

• PPN4016 - 4” x 16”, Push Plate.

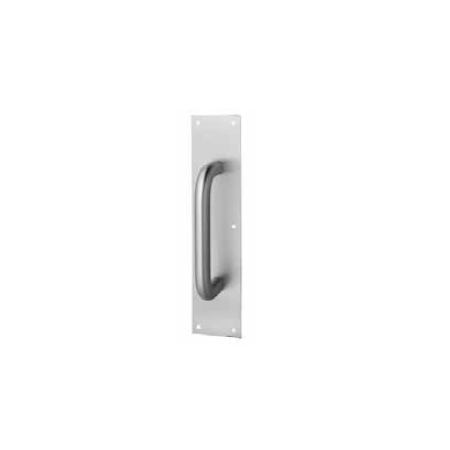

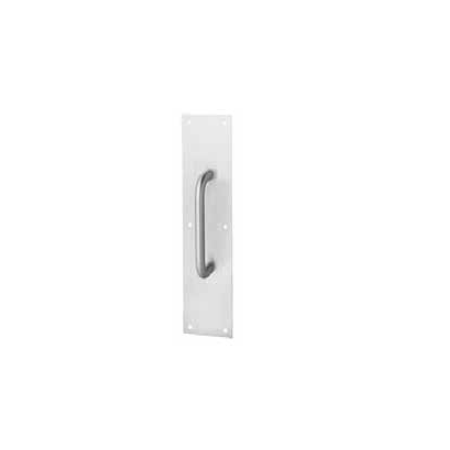

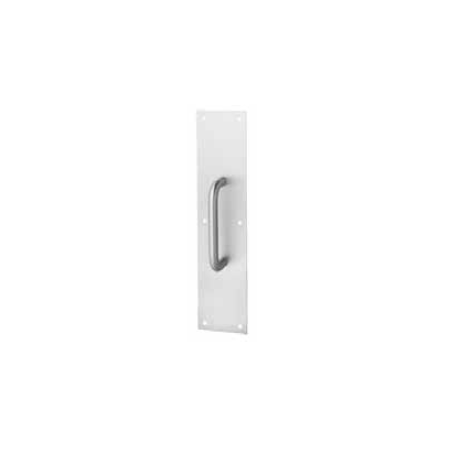

• PPN4016R - 4” x 16” Plate with Round Pulls.
- R -Round Pull 6-3/4” Overall, 6” C to C and
2·1/8” Projection.
• 4016 push plate and 4016R pull plates stocked in SS430
Stainless (less nickel) Size 4”x 16” only. Specify PPN.
Specifications:
Plate Goods -Plate goods shall be by Doormerica model number
PPN and made from stainless steel. All plates to be a minimum
of 16 gauge (.050) and beveled on four sides. All Plates to be
provided with stainless steel Phillips sheet metal screws plated
to match finish. Each plate shall be individually wrapped with
mounting screws.
Features:
• All Plate Goods are 16 Gauge (.050) Thick.
• Stainless Steel SS430, no Nickel.
• Plates individually wrapped with Mounting Screws.
• Pull Plates and Handles have Mounting Screws for 1-3/4”
Thick Door.
• All Plates Packed with Stainless Steel Sheet Metal Screws
Plated to Match Finish.
Options:
• PPN4016 - 4” x 16”, Push Plate.
• PPN4016R - 4” x 16” Plate with Round Pulls.
- R -Round Pull 6-3/4” Overall, 6” C to C and
2·1/8” Projection.
• 4016 push plate and 4016R pull plates stocked in SS430
Stainless (less nickel) Size 4”x 16” only. Specify PPN.
Specifications:
Plate Goods -Plate goods shall be by Doormerica model number
PPN and made from stainless steel. All plates to be a minimum
of 16 gauge (.050) and beveled on four sides. All Plates to be
provided with stainless steel Phillips sheet metal screws plated
to match finish. Each plate shall be individually wrapped with
mounting screws.
