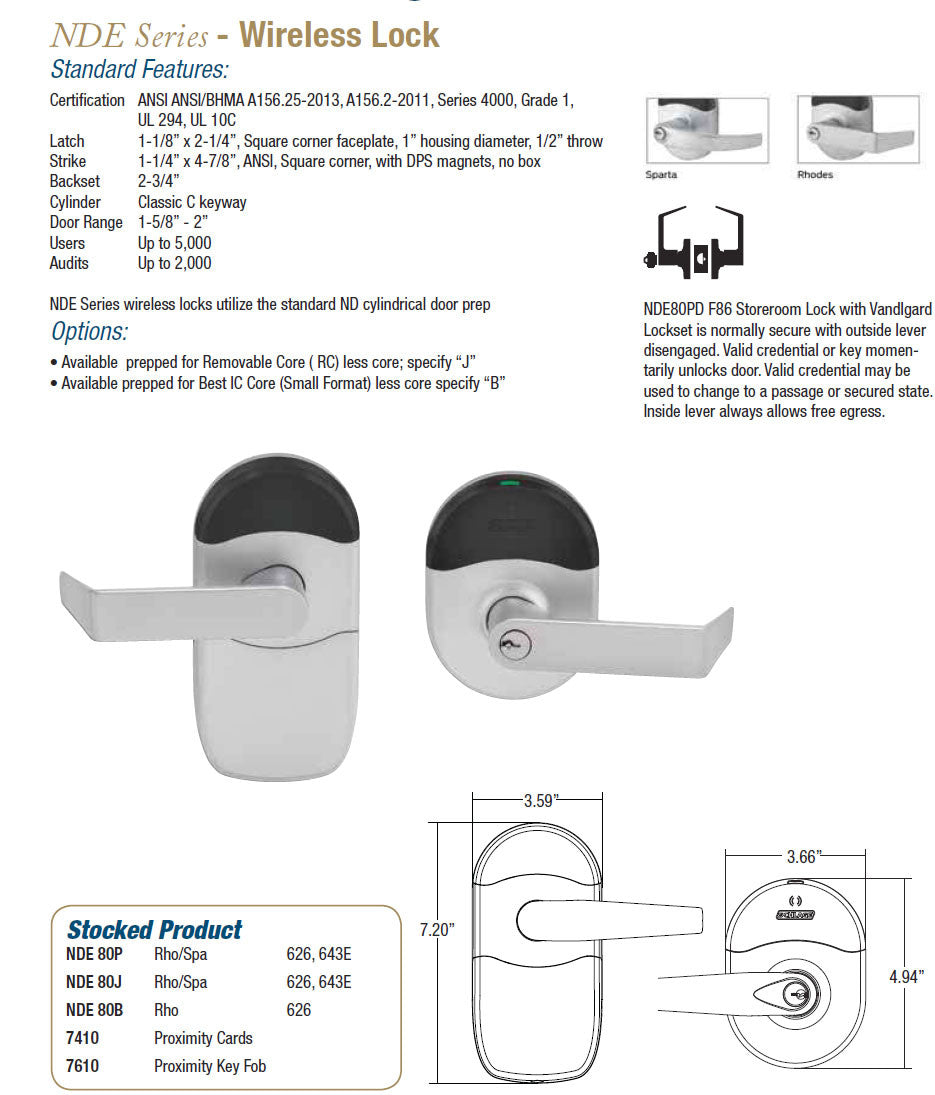

NDE80P Wireless Lock
Standard Features:
Certification ANSI ANSI/BHMA A156.25-2013, A156.2-2011, Series 4000, Grade 1,
UL 294, UL 10C
Latch 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1/2” throw
Strike 1-1/4” x 4-7/8”, ANSI, Square corner, with DPS magnets, no box
Backset 2-3/4”
Cylinder Classic C keyway
Door Range 1-5/8” - 2”
Users Up to 5,000
Audits Up to 2,000
NDE Series wireless locks utilize the standard ND cylindrical door prep
Options:
• Available prepped for Removable Core ( RC) less core; specify “J”
• Available prepped for Best IC Core (Small Format) less core specify “B”
NDE80PD F86 Storeroom Lock with Vandlgard
Lockset is normally secure with outside lever
disengaged. Valid credential or key momentarily
unlocks door. Valid credential may be
used to change to a passage or secured state.
Inside lever always allows free egress.
Standard Features:
Certification ANSI ANSI/BHMA A156.25-2013, A156.2-2011, Series 4000, Grade 1,
UL 294, UL 10C
Latch 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1/2” throw
Strike 1-1/4” x 4-7/8”, ANSI, Square corner, with DPS magnets, no box
Backset 2-3/4”
Cylinder Classic C keyway
Door Range 1-5/8” - 2”
Users Up to 5,000
Audits Up to 2,000
NDE Series wireless locks utilize the standard ND cylindrical door prep
Options:
• Available prepped for Removable Core ( RC) less core; specify “J”
• Available prepped for Best IC Core (Small Format) less core specify “B”
NDE80PD F86 Storeroom Lock with Vandlgard
Lockset is normally secure with outside lever
disengaged. Valid credential or key momentarily
unlocks door. Valid credential may be
used to change to a passage or secured state.
Inside lever always allows free egress.
