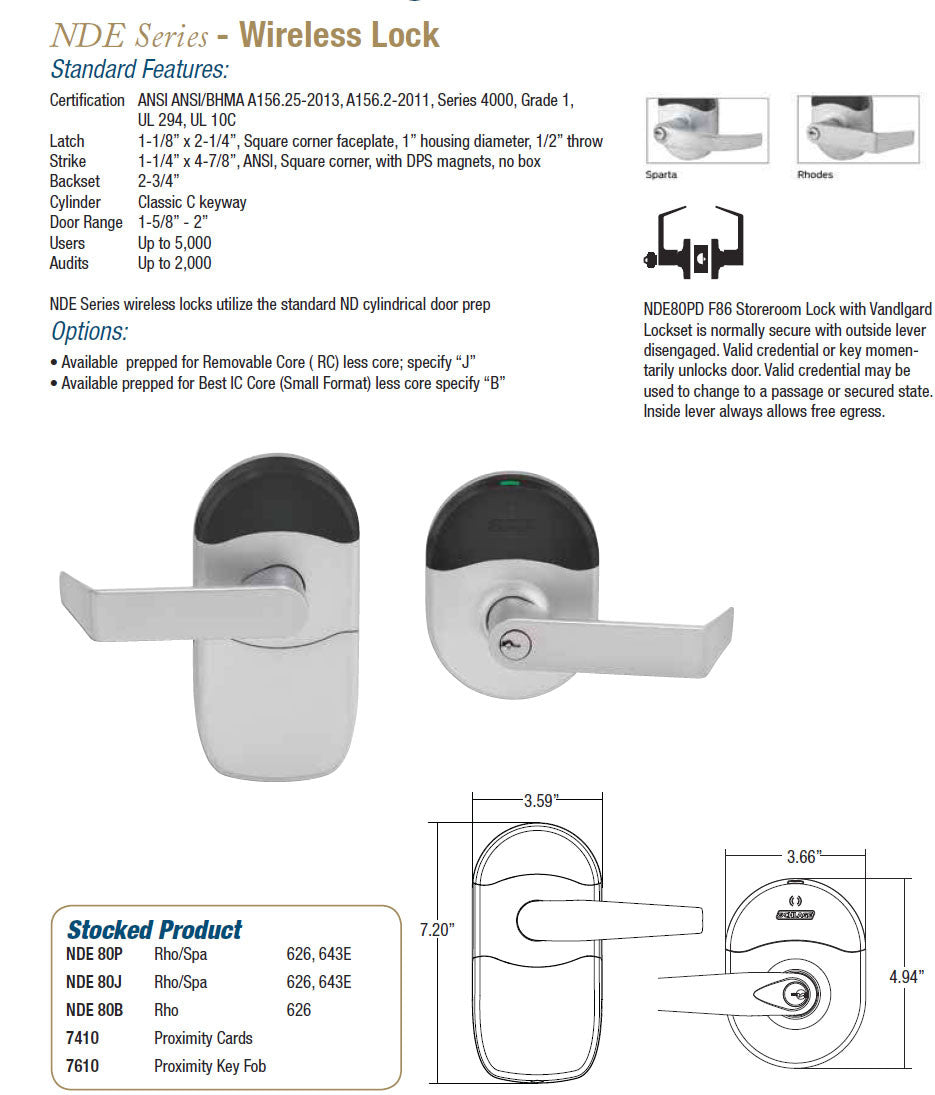

NDE80B Wireless Lock
Standard Features:
Certification ANSI ANSI/BHMA A156.25-2013, A156.2-2011, Series 4000, Grade 1,
UL 294, UL 10C
Latch 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1/2” throw
Strike 1-1/4” x 4-7/8”, ANSI, Square corner, with DPS magnets, no box
Backset 2-3/4”
Cylinder Classic C keyway
Door Range 1-5/8” - 2”
Users Up to 5,000
Audits Up to 2,000
NDE Series wireless locks utilize the standard ND cylindrical door prep
Options:
• Available prepped for Removable Core ( RC) less core; specify “J”
• Available prepped for Best IC Core (Small Format) less core specify “B”
626
