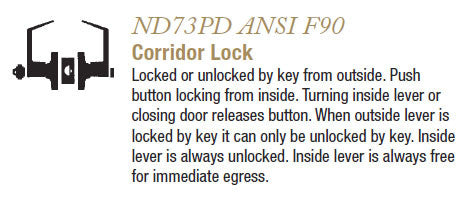

ND73PD ANSI F90
Corridor Lock
Locked or unlocked by key from outside. Push
button locking from inside. Turning inside lever or
closing door releases button. When outside lever is
locked by key it can only be unlocked by key. Inside
lever is always unlocked. Inside lever is always free
for immediate egress.
Standard Features:
Certification Exceeds ANSI A156.2, Series 4000, Grade 1,
UL Listed for 3 hour fire door. Meets A117.I
Feature Tested to exceed three million cycles
Latch 1-1/8” x 2-1/4”, Square corner faceplate, 1” housing diameter, 1/2” throw
Strike 1-1/4” x 4-7/8”, ANSI, Square corner, no box
Backset 2-3/4” standard, other backsets available
Cylinder Classic C keyway, also available C123 Everest Keyway
Door Range 1-5/8” - 2-1/8”
Options:
• Available prepped for Removable Core ( RC) less core; specify “J”
• Available prepped F/ Best IC Core (Small Format) less core specify “B”
