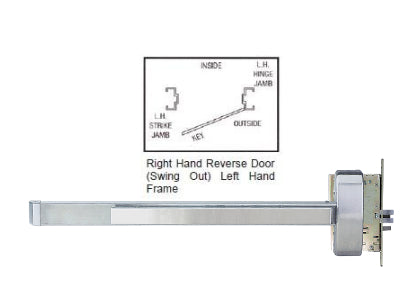

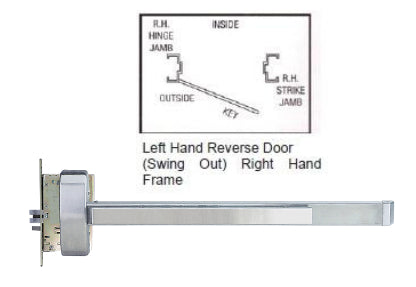

Cal-Royal MR9800 Mortise Exit Device – US32D Satin Stainless Steel Finish

Description:
The Cal-Royal MR9800 Mortise Exit Device in US32D Satin Stainless Steel is a premium-grade solution for high-traffic commercial and institutional buildings. Designed for durability, safety, and ADA compliance, this mortise-style exit device is ideal for schools, hospitals, offices, and more.

Key Features:

• ANSI A156.3, Grade 1 Certified: Built for heavy-duty use in demanding environments
• UL Listed for Panic & Fire Exit Use: FMR9800 model rated for up to 3-hour fire-labeled doors
• Mortise Lock Mechanism: Grade 1 mortise lock included for enhanced security
• Fits Standard Doors: For 1-3/4” thick wood or metal doors with minimum 4-1/2” stile width
• Field Reversible Handing: Easily switch between RHR and LHR in the field
• Device Lengths Available: 36” and 48” models to fit various door widths
• Durable Construction:

  • Steel mortise lock case
  • Aluminum head chassis
  • Stainless steel chassis cover and end cap
• Standard ANSI Strike Included: Stainless steel strike for secure latching
• Dogging Feature: Cylinder dogging available on non-fire-rated models
• Electronic Options: Electrical Latch Retraction (ELR), RX & LX signal switches available
• Anti-Microbial Coating: Available on US32D finish for hygiene-sensitive environments
• ADA Compliant: 5 lbs opening force on ADA models

Why Choose the MR9800 Exit Device?

• Ideal for high-traffic exits in schools, universities, hospitals, and commercial buildings
• Combines safety, durability, and modern aesthetics
• Compatible with a wide range of trims and electronic access options
• Backed by Cal-Royal’s trusted performance and certifications
