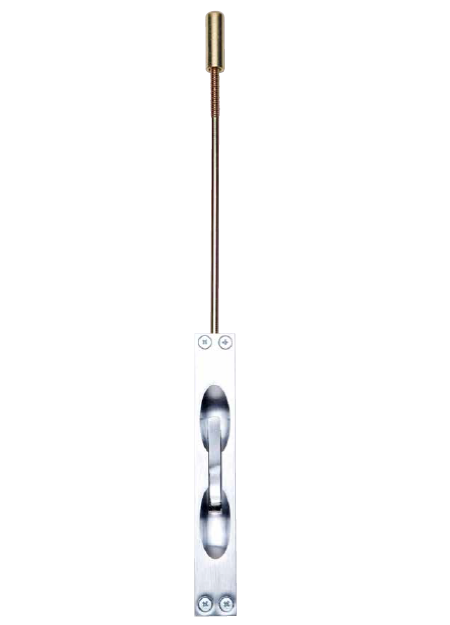

MANUAL FLUSH BOLTS

CATALOG

Features:
• FB197 -Forged Brass.
• FB197AL -Extruded Aluminum (DISCONTINUED).
• Non-Handed.
• 5/8” Throw with 7/8” Vertical Adjustment.
• 12” Rod to Fit Standard ANSI Preparation.
• Spring Loaded Lever to Project or Retract Bolt.
• Forged Brass Construction.
• Bolt Housing Screws #8 x 32 x 1/2” MS
#8 x 1”SM
• Strike Screws #8 x 32 x 1/2” MS
#8 x 1”SM
• Bolt Guide Screws #8 x 32 x 1/2” MS
#8 x 1” SM
• Listed up to 3 hours on Hollow Metal and Steel-
Covered Composite Doors up to 8 feet.

Specifications:
Manual Flush Bolt -Manual flush bolts shall be by
Doormerica model number FB197 series made from
forged brass or FB197AL series made from extruded
aluminum. Flush bolts shall be provided with 1/2”
diameter brass bolts and project 5/8” from the top or
bottom edge of door with 7/8” vertical adjustment. Flush
bolts shall have spring loaded lever to project or retract
the bolts.

CODE COMPLIANCE:
• FED. SPEC. -1049
• ANSI-A156.16.
• BHMA -Ll4081
• NFPA 80 -National Fire Protection Association
1 YEAR LIMITED WARRANTY
