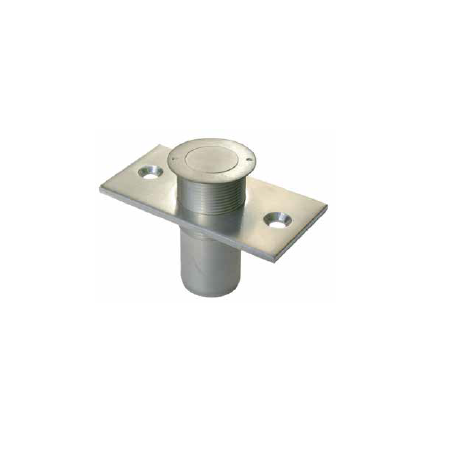

Dust Proof Strike

Doormerica

$9.00
SKU: DAS9TAHDPS28010B

CATALOG

Features:
• Spring Loaded 3/4” Plunger.
• Both Floor and Threshold Installation.
• Face Plate 3” x 1-1/2”.
• Body Diameter 15/16”.
• Over all Depth 2-1/4”
• Strike Screws #12 x 1-1/2”
• Plastic Anchors
• Listed for use up to 3 Hours

Specifications:
Dust Proof Strike – Dust Proof Strike shall be by
Doormerica model number DPS280 series and made from
extruded brass. All dust proof strikes shall be provided with
3/4” diameter spring loaded plunger that returns to the floor
level when the flush bolt is retracted.

CODE COMPLIANCE:
• ANSI - A156.16.
• BHMA – L14011 - L14012
• Conforms to UL10C and UBC 7-2.
• ANSI A117.1 and ADA for barrier-free accessibility.
• C-UBC - California Uniform Builders Code.
• NFPA-80- National Fire Protection Association.
• NFPA-101- National Fire Protection, Life Safety.
1 YEAR LIMITED WARRANTY
