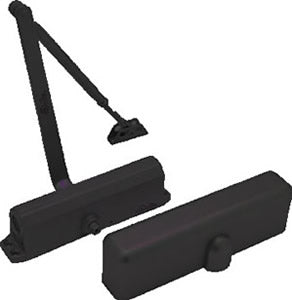

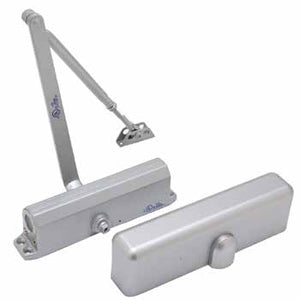

DC161/DC161BF Standard Duty Commercial
• Same hole pattern as Norton 1600.
• Tri-Pack with regular, parallel and top-jamb mounting,
instructions and full size template.
• Standard spring adjustment from size 2 to 6
• Non handed
• Standard with adjustable sweep, latch and back check.
• Slimline Plastic Cover
• SNB -Sex Nuts and Bolts
• BF: Barrier free spring adjustment from size 1 - 4
• H: Hold Open Arm.
Full rack and pinion type with cast aluminum alloy body. All
closers shall be provided with non-critical valves adjustment
to independently regulate the sweep, latch and back-check.
Closer shall have full spring adjustment from size 1 to size
4 for barrier free (BF) size and size 2 to size 6 for standard
size. The closer shall be pre-adjusted at the factory to size 2
for the DC161BF and size 3 for DC161. Closer shall be nonhanded
with slim line cover with a projection of 3” from the
surface of the door. All closers shall be mounted to allow the
maximum degree of swing.
• ANSI A156.4 Grade 1 UL1OC and UBC 7.2 for positive pressure.
• ANSI A117.1 and ADA for barrier-free accessibility
• C-UBC -California Uniform Builders Code -2001
• California State Fire Marshall (CSFM) approved
10 YEAR LIMITED WARRANTY
