Continuous Hinges - 780-210 HD Full Surface
Features:
Individually packed

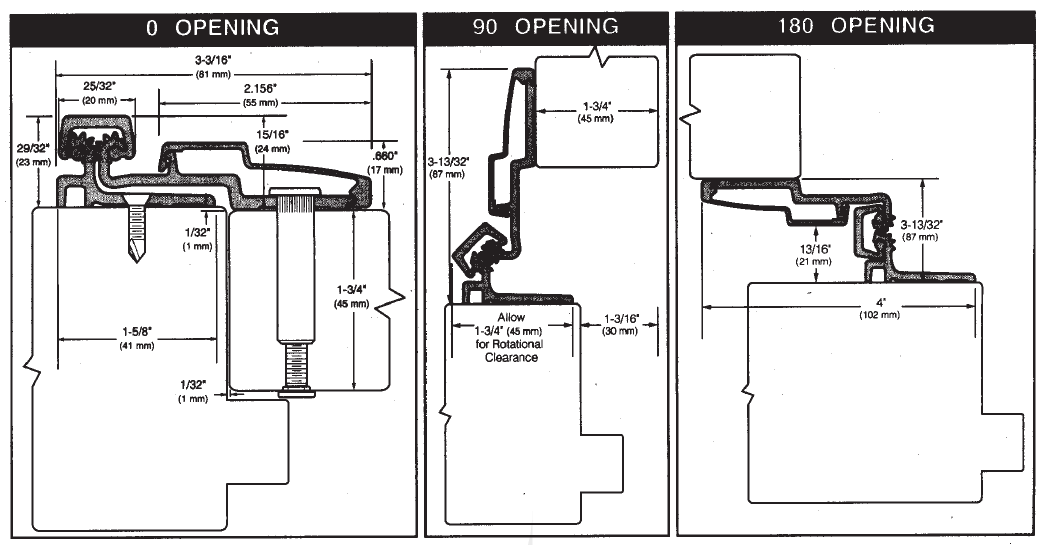

Clearance - None required for hinge side, 1-5/8” minimum frame face required plus 3/16” rotational clearance
Fasteners - Dril-kwick screws and sexbolts included
Length - Stock 83”, 95”
Special order 79”, 85”, 119”
Door reinforcement - None required
Frame reinforcement - None required up to 200 lbs, use 16 gauge channel
Special features - Zero clearance required for hinge side. Can be used with any door and frame material
HD - Heavy duty, Fire Rated
Stocked Product
• 780-210HD 83” and 95” Clear, 83” Dark Bronze
Features:
Individually packed
Clearance - None required for hinge side, 1-5/8” minimum frame face required plus 3/16” rotational clearance
Fasteners - Dril-kwick screws and sexbolts included
Length - Stock 83”, 95”
Special order 79”, 85”, 119”
Door reinforcement - None required
Frame reinforcement - None required up to 200 lbs, use 16 gauge channel
Special features - Zero clearance required for hinge side. Can be used with any door and frame material
HD - Heavy duty, Fire Rated
Stocked Product
• 780-210HD 83” and 95” Clear, 83” Dark Bronze
