CATALOG

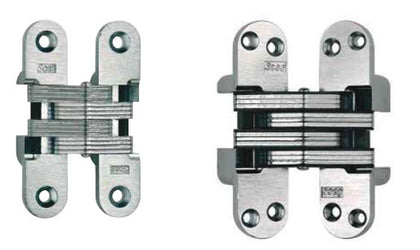

Models 216 & 218
Features
• Security- When closed, the SOSS Invisible Hinge cannot be seen or tampered with.
When opened, the riveted hinge pin is non-removable.
• Safety- The moving pivot point remains inside the hinge during travel until fully opened,
eliminating an external pinch point on the back side of the door.
• Strength- The installed hinge is firmly anchored in a deep, full mortise, which assists the
screws in supporting the door, assuring a stronger, more rigid installation.
Stocked Product
Item Finish
216 US4, US26D
218 US4, US26D
Specifications
216 - 1-3/8” Doors 218 - 1-3/4” Doors
A 1”(25.40mm) 1-1⁄ 8”(28.58mm)
B 23⁄ 32”(18.26mm) 7⁄ 8”(22.23mm)
C 4-5⁄ 8”(117.48mm) 4-5⁄ 8”(117.48mm)
D 7⁄ 32”(5.56mm) 3⁄ 8”(9.53mm)
E 1⁄ 4”(6.35mm) 1⁄ 4”(6.35mm)
F 2-19⁄ 32”(65.88mm) 2-7⁄ 16”(61.91mm)
G 1⁄ 16”(1.59mm) 1⁄ 16”(1.59mm)
H 1-7⁄ 16”(36.51mm) 1-41⁄ 64”(41.67mm)
I 15⁄ 32”(11.91mm) 13⁄ 32”(10.32mm)
