RL Pioneer Series Lock
Usually Ships: 1-3 Business Days

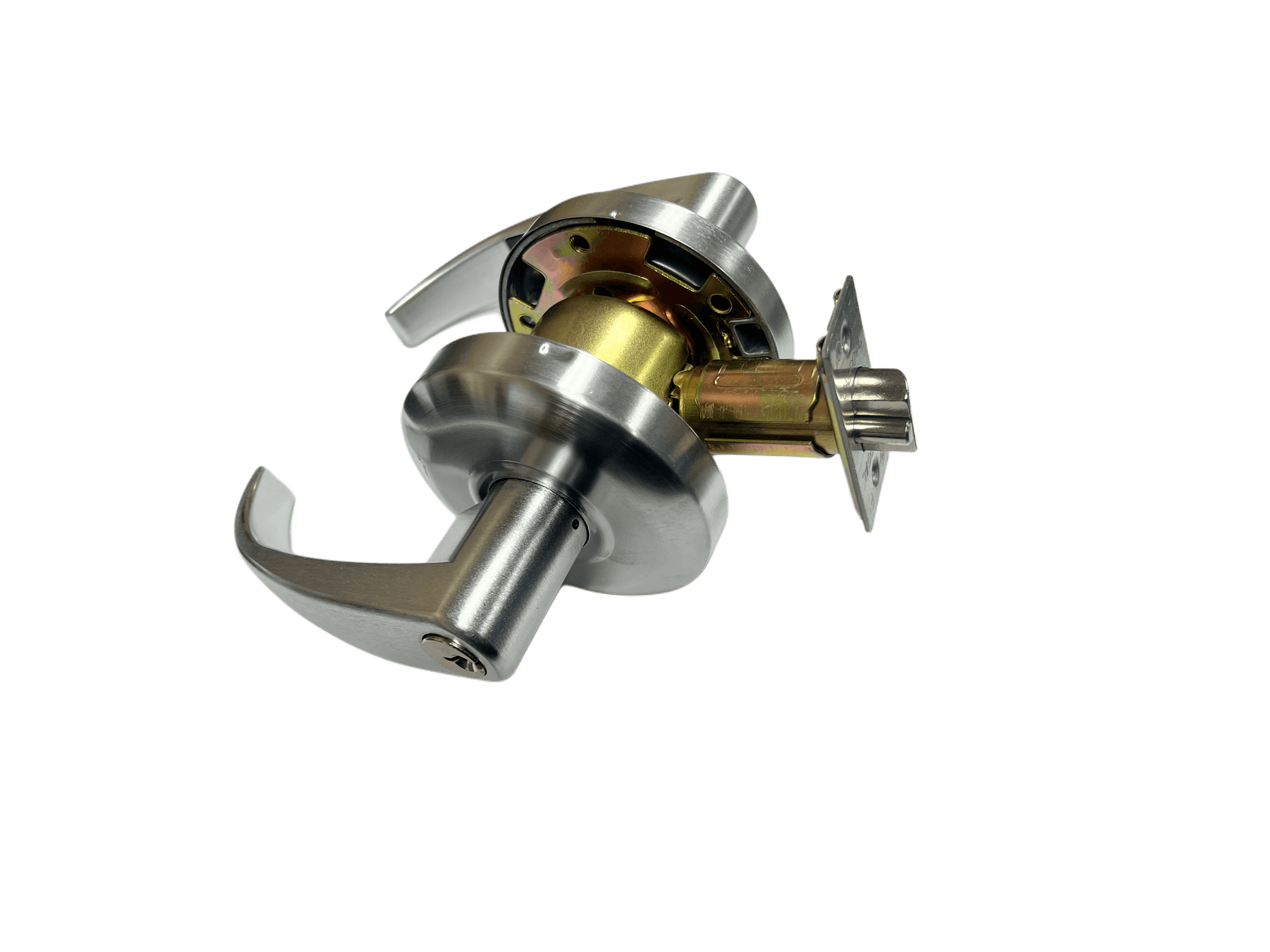

Cal-Royal RL Pioneer Series Lock – Grade 2 Commercial Lever Lockset
Enhance your building’s security with the Cal-Royal RL Pioneer Series Lock—engineered for high-traffic environments and built to meet ANSI Grade 2 standards. Ideal for commercial, institutional, and residential applications.
Product Features:
- ANSI/BHMA Grade 2 Certified – Tested for over 400,000 cycles for long-lasting durability.
- ADA Compliant – Easy-to-operate lever design meets accessibility standards.
- Heavy-Duty Cylindrical Lockset – Built for performance in schools, offices, and public buildings.
- Clutch & Non-Clutch Options – Choose SL (non-clutch) or CSL (clutch) for added security.
- Interchangeable Core Compatible – Accepts 7-pin cores from BEST®, FALCON®, and ARROW®.
- UL Listed – 3-Hour Fire Rated – Certified for use on fire-rated doors.
- Flexible Backset Options – Available in 2-3/8”, 2-3/4”, 3-3/4”, and 5” backsets.

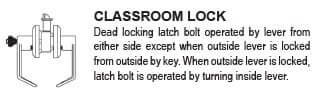

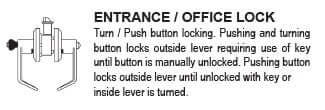

- Multiple Functions Available – Entrance, passage, privacy, and classroom functions.
- Durable Finishes – Satin Chrome (US26D), Polished Brass (US3), Satin Nickel (US15), and more.
- Low Maintenance – Coil compression springs and individual lever springs reduce wear and sagging.
Ideal For:
- Commercial buildings
- Schools and universities
- Hospitals and healthcare facilities
- Multi-family housing
- Government and public buildings
Cal-Royal RL Pioneer Series Lock – Grade 2 Commercial Lever Lockset
Enhance your building’s security with the Cal-Royal RL Pioneer Series Lock—engineered for high-traffic environments and built to meet ANSI Grade 2 standards. Ideal for commercial, institutional, and residential applications.
Product Features:
- ANSI/BHMA Grade 2 Certified – Tested for over 400,000 cycles for long-lasting durability.
- ADA Compliant – Easy-to-operate lever design meets accessibility standards.
- Heavy-Duty Cylindrical Lockset – Built for performance in schools, offices, and public buildings.
- Clutch & Non-Clutch Options – Choose SL (non-clutch) or CSL (clutch) for added security.
- Interchangeable Core Compatible – Accepts 7-pin cores from BEST®, FALCON®, and ARROW®.
- UL Listed – 3-Hour Fire Rated – Certified for use on fire-rated doors.
- Flexible Backset Options – Available in 2-3/8”, 2-3/4”, 3-3/4”, and 5” backsets.
- Multiple Functions Available – Entrance, passage, privacy, and classroom functions.
- Durable Finishes – Satin Chrome (US26D), Polished Brass (US3), Satin Nickel (US15), and more.
- Low Maintenance – Coil compression springs and individual lever springs reduce wear and sagging.
Ideal For:
- Commercial buildings
- Schools and universities
- Hospitals and healthcare facilities
- Multi-family housing
- Government and public buildings
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 1 ¾” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- CLUTCH Clutch available on all keyed locks and privacy functions. Prefix“C” before part number.
- INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- TACTILE & LEAD LINING available upon request.
